RAM® Power Plate™ III Radar Detector Mount with Handlebar U-Bolt Base

Part#: RAM-B-149Z-300-1U
UPC:793442951244Patented

£53.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

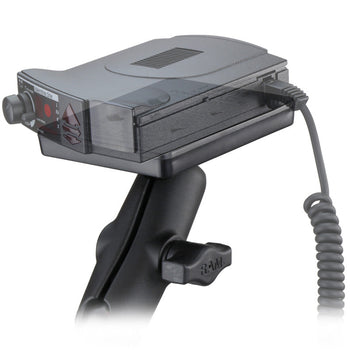

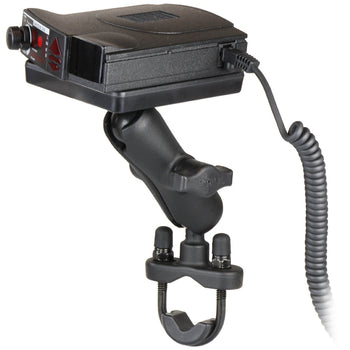

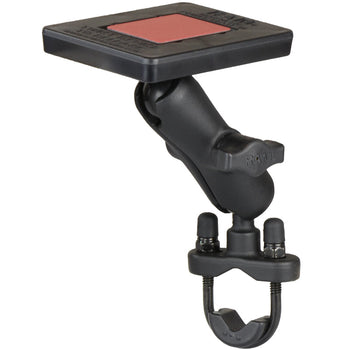

The RAM Magnetic Power Plate™ III U-Bolt Handlebar Mount is designed to hold radar detectors securely while on the road. The magnetic plate includes two powerful rare earth magnets, composite cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel plate to the back of you device and lock up against the holder. This holder includes a quick-release function, where the device conventiely can be removed by twisting out of the holder in one easy motion. The Handlebar U-Bolt Mount is made up of three components total: A U-bolt ball base that can accommodate any handlebar from .5" to 1.25" diameter, a double socket arm, and a round ball plate that connects to the bottom of the RAM Power Plate III. The double ball and socket design provides infinite adjustability, so you can articulate your radar detector to the perfect viewing and operating angle. The rubber ball components provide shock and vibration damping, making this mount suitable for any rugged environment.

hardware included

Assembly Hardware
(1) 50mm x 38mm Steel Adhesive Plate
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.359 kg
