RAM® Aqua Box® ATV/UTV Rail Mount for Medium-Wide Devices
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.

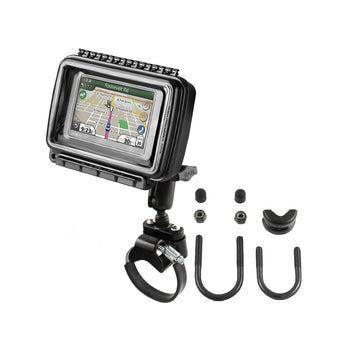

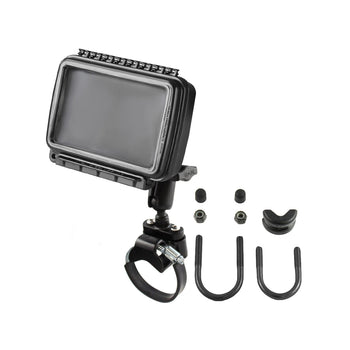

RAM UTV/ATV strap mount with medium/wide size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The strap base accommodates rails from 40mm (Min) to 80mm (Max) in diameter.
Components
hardware included
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
internal dimensions
Width: 6"
Height: 4"
Depth: 1.75"
clamp range
U-Bolt: .5" - 1.25" diameter

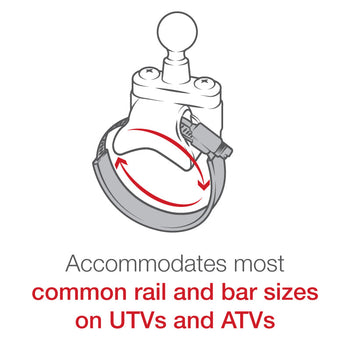

Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Retail Bag
Weight
0.75 kg
