RAM® EZ-Roll'r™ Drill-Down Mount for Garmin Fleet 770, Overlander + More
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Form-fit cradle designed specifically for select Garmin devices secures your GPS while keeping all buttons and the power port fully accessible
- Includes 2.5" round base with B size 1" rubber ball, locking medium length B size double socket arm, and diamond ball base that attaches to the cradle
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

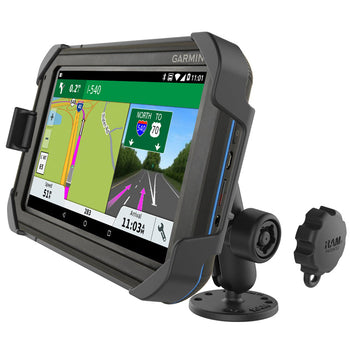

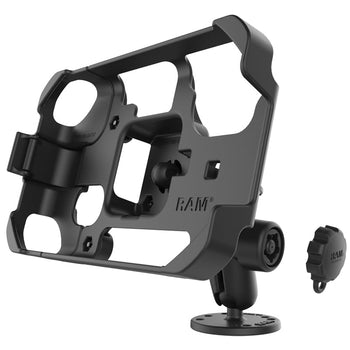

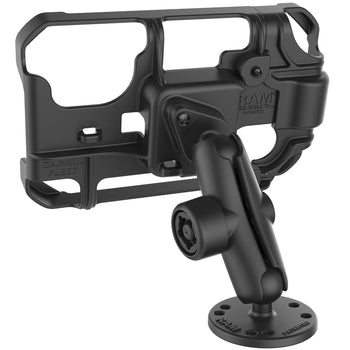

The EZ-Roll’r™ cradle for the Garmin Fleet 770/780/790 provides a secure fit with quick and easy one-handed attachment and removal of the device from the cradle. With the included cradle lock as a theft deterrent, keep the Garmin Fleet protected when left inside the vehicle. This mounting kit includes a 2.5” round base with AMPS hole pattern, locking double socket arm and diamond base adapter that connects to the EZ-Roll’r cradle.
Components
hardware included
Assembly Hardware
(1) RAM Pin-Lock Security Key
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.41 kg
