RAM® Level Cup™ 16oz Drink Holder with ATV/UTV Rail Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.

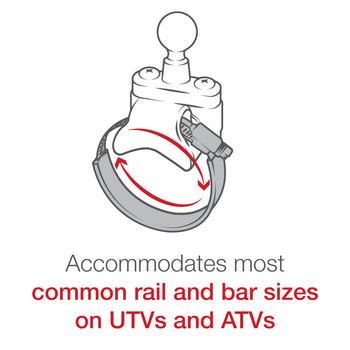

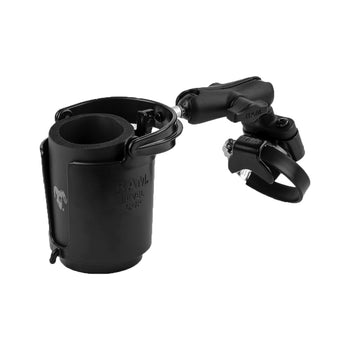

The RAM-B-132R-2U consists of a steel strap base, zinc coated u-bolt base, double socket arm, 1" diameter ball and a RAM Level Cup™ Self-Leveling Drink Holder with RAM can insulator. Designed for a clean installation, the RAM strap base will accommodate roll bars from 1.57" to 3.14" in diameter, letting you keep your favorite beverage within reach. Safely concealing the strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. The stainless steel u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. The RAM B size 1" diameter patented rubber ball and socket system has adjustment points at both ends of the double socket arm. Wth a twist of the arm knob, you can move the Self Leveling Cup Holder mount to your optimum position. Take a corner as hard as you like, this holder is ready to ride. The integrated eyelet and hook provide an optional tethering function, securing any small or open container in any harsh environment. Compatible with any cups, cans, bottles or mugs ranging from 2.5” to 3.5” diameter.

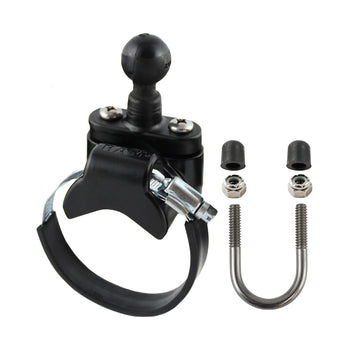

hardware included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
drink size
12-16 oz
clamp range
U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.4 kg
