RAM® Strap Hose Clamp Ball Base 1.5" - 2.1"
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.

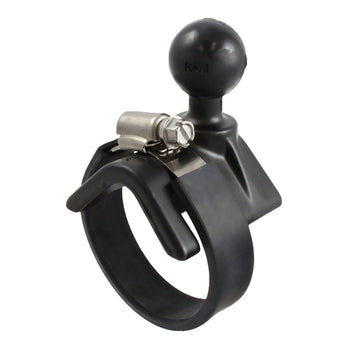

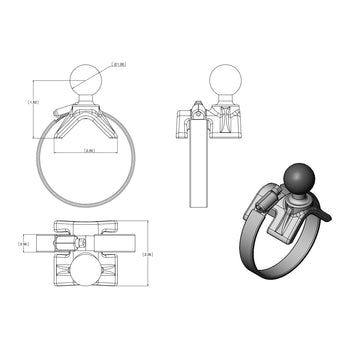

The RAM-B-108BU-HUM1 consists of a 1" diameter rubber ball connected at a right angle to a v-shaped base. The RAM-B-108BU-HUM1 accommodates rails from 1.5" to a maximum of 2.1" in diameter. To mount the RAM-B-108BU-HUM1 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU-HUM1 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”.
hardware included
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range
1.5" - 2.1" diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.118 kg
