RAM® Chrome Double Socket Arm with Diamond Plate - Short Arm

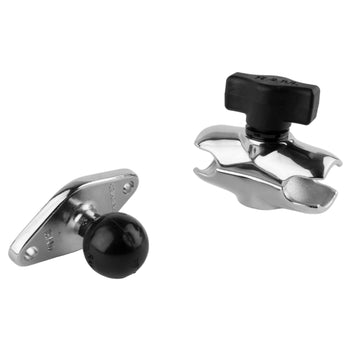

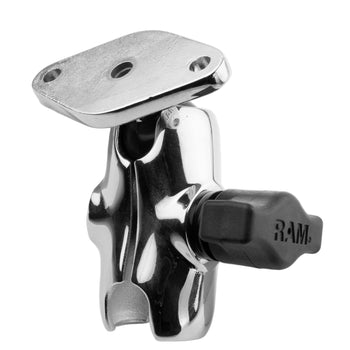

The RAM-B-103-A-238CHU consists of a CHROME diamond base and SHORT double socket arm that will accept 1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
Overview
socket to socket length
1.75"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.17 kg
