RAM® NFC Extender with Dashboard Mount
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Includes 2.10" x 2.60" steel backing plate with B size RAM® double ball mount and NFC repeater
- NFC repeater extends to 30cm of reach and attaches to the back of select RAM® and GDS® tablet docks
- Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
- Backed by a 3-year warranty

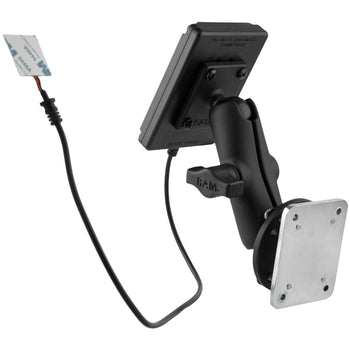

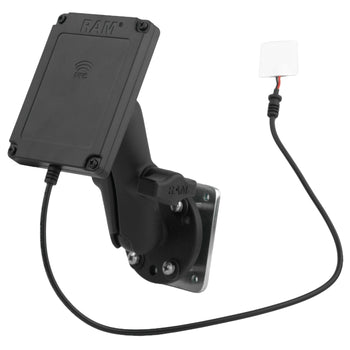

This NFC repeater dashboard mount with backing plate (RAM-B-101-225B-NFCU) consists of a NFC repeater, double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles. The NFC mount is ideal for transportation applications.
Components
hardware included
Assembly Hardware
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Steel
Marine-grade alluminum
High strength composite
packaging type
Poly Bag
Weight
0.377 kg
