RAM® Double Ball Diamond Plate Mount - A Size Medium
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

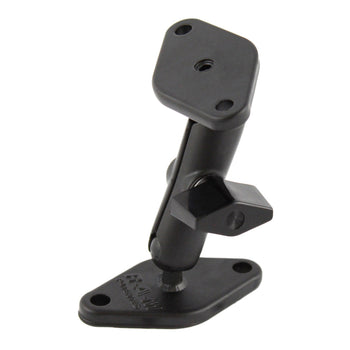

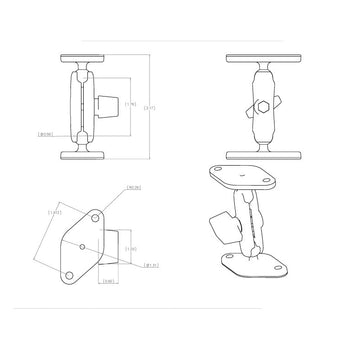

The RAM-A-101U consists of a double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 0.56" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
Components
socket to socket length
1.67"
hole pattern
2-Hole AMPS 1.912"
ball size
A Size (9/16")
weight capacity
.5 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.08 kg
