RAM® Track Ball™ Heavy Duty Mount for weBoost
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

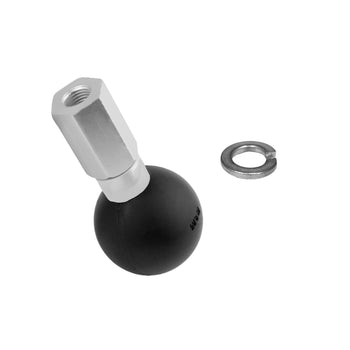

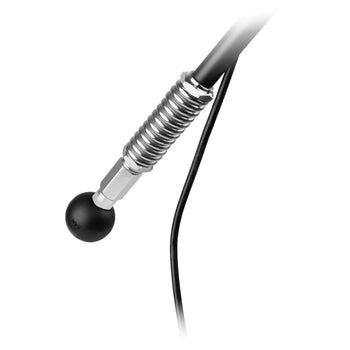

- Kit includes a RAM® Tough-Ball™ with 3/8"-24 x .375" threaded hole that screws onto the thread adapter of the weBoost antenna that screws into thread adpater of the weBoost antenna, C size short length socket arm and C size RAM®
- The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
- Made of marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

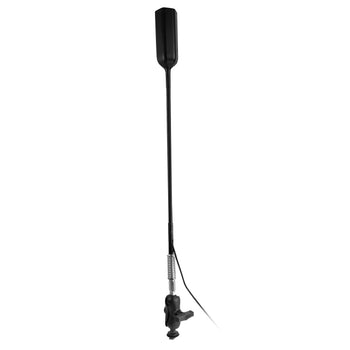

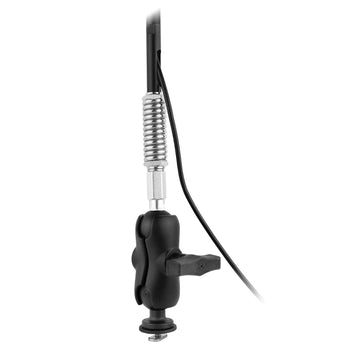

The RAM® Track Ball™ Heavy Duty Mount for weBoost (RAM-451-B-354-TRA1U) is a mounting kit that includes a C size ball with a 3/8"-24 x .625" threaded hole compatible with the weBoost antenna, a C size short length socket arm, and a C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with the Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.
Components
hardware included
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions
.48" x .95"
socket to socket length
2.5"
thread pitch
3/8"-24
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.371 kg
