RAM® Torque™ 1 ½" - 2" Diameter Rail Base - C Size aluminium Ball
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

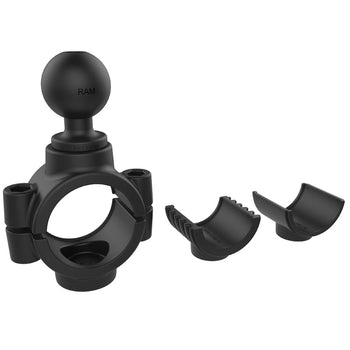

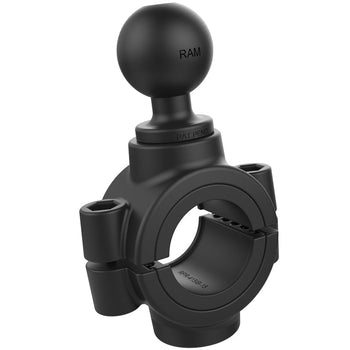

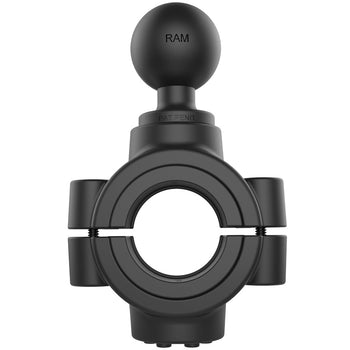

The RAM® Torque™ rail mounting base securely attaches to bars 1.5” to 2” in diameter. The double-sided Pin-Lock™ rail base and ball allows for the connection of up to two devices and is ideal for securing small electronics, spotlights, cameras, or cup holders to ATVs, UTVs, off-road vehicles and heavy equipment rail bars. Sizing inserts are included to provide a snug fit and protection of the rail, and the mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque™ Rail Base for mounting multiple devices.
hardware included

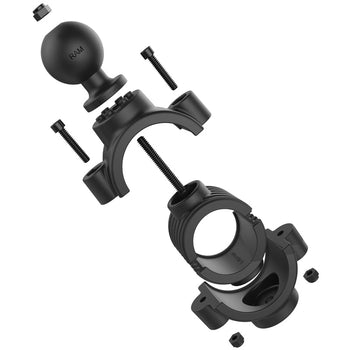

Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(1) 5/32" Hex Key Wrench
(2) 1.5" Split Reducing Bushings
(2) 1.75" Split Reducing Bushings
(1) 172mm x 38.5mm Rubber Adhesive Strip
clamp range
1.5" - 2" diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.38 kg
