RAM® Angled Round Adapter Plate for XM & GPS Antennas
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.

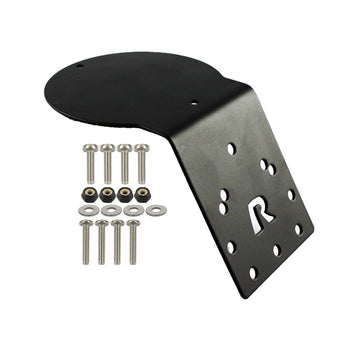

Designed to hold an XM or GPS antenna magnetically or via screw down attachment, the RAM-344U plate will attach between any RAM base with the AMPS hole pattern and most standard XM units and RAM GPS cradles. Mount your satellite radio receiver or GPS in a RAM cradle and antenna all on a single platform for both ease of installation and use. Whether you've run out of mounting space or simply have few good mounting surfaces, the RAM-344U antenna adapter plate opens up many possibilities.
hardware included
(4) M3 x 12mm Machine Screws
(4) #6-32 x 3/4" Machine Screws
(4) #6 Stainless Steel Washers
(4) #6-32 Nylock Nuts
materials
Powder coated steel
packaging type
Poly Bag
Weight
0.14 kg
