RAM® Double U-Bolt Mount with 75x75mm VESA Plate for .75" - 1" Rails

Part#: RAM-334-1U
UPC:793442905100

£70.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

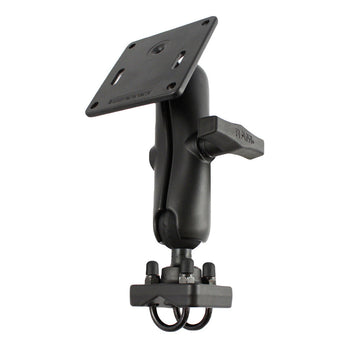

The RAM-334-1U consists of a double socket arm, 3.625" square base with the VESA hole pattern and stainless steel double u-bolt base that will fit pipes from 0.75" to 1" in diameter. The VESA base contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

hardware included

(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

clamp range

.75" - 1" diameter

socket to socket length

4.66"

hole pattern

75 x 75mm VESA

plate size

3.625" x 3.625"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.73 kg
