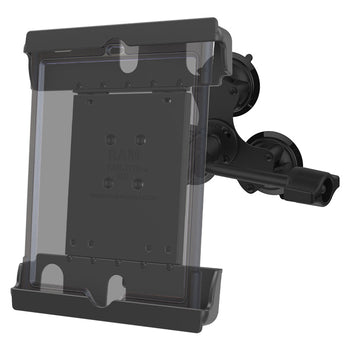

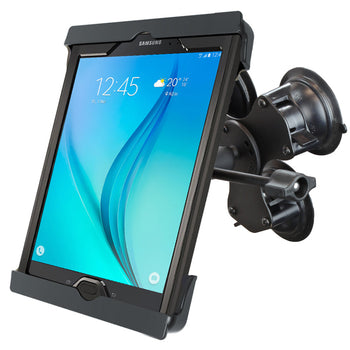

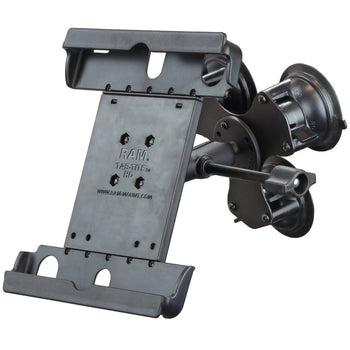

RAM® Tab-Tite™ with RAM® Twist-Lock™ Triple Suction for 9"-10.5" Tablets
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes RAM® Twist-Lock™ triple suction cup base ideal for windshields and other nonporous surfaces
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captain of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
suction size
(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Powder coated steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
1.011 kg
