RAM® Pod™ HD Reverse Vehicle Mount with 12" Pipe - GM Hardware

Part#: RAM-316-HDR-202-GMU
UPC:793442006555Patented

£174.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

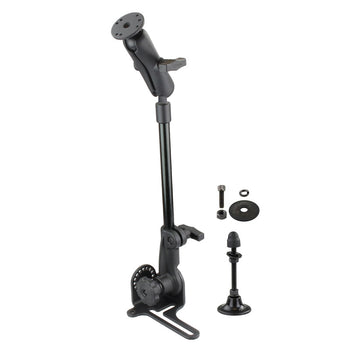

Blending the best of versatility, strength and installation ease; the RAM POD HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM POD HD™ is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM POD HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet. This is the reverse configuration version which means the footing is better suited for right hand drive vehicles.

hardware included

Assembly Hardware
(1) 5/16"-18 x 1" Socket Cap Screw
(1) 5/16" Fender Washer
(1) 5/16" Split Lock Washer
(1) 5/16"-18 Steel Nut
Stabilizer Foot

product dimensions

Height Range: 18.75" - 25.75"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Powder coated steel
Marine-grade aluminium

packaging type

Poly Bag

Weight

2.34 kg
