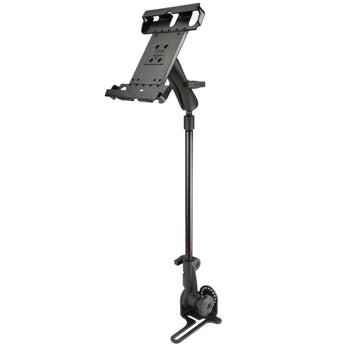

RAM® Pod HD™ 30" Vehicle Mount for 9"-10.5" Tablets with Cases
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

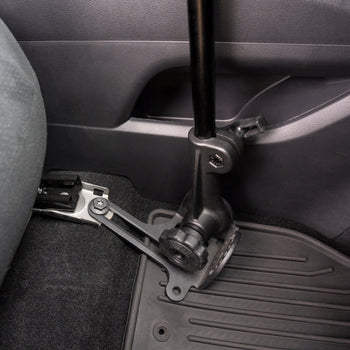

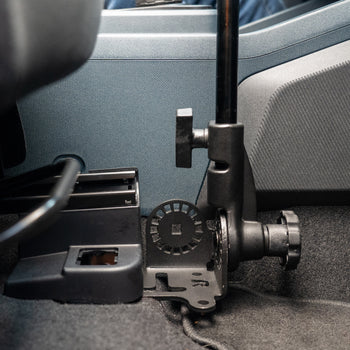

- Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices; universal vehicle mount attaches to seat bolt without any drilling necessary
- Includes universal vehicle mount and 4-hole AMPS pattern ball adapter; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
One of the best vehicle mounts for versatility, strength and installation ease; the RAM® Pod HD™ paired with the RAM® Tab-Tite™ holder for 9"-10.5" tablets in a case is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM® Pod HD™ is an ideal solution for mounting tablets and other similar devices. The versatility of the RAM® Pod HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your 9"-10.5" tablet.
Components
hardware included
Assembly Hardware
Stabilizer Foot
product dimensions
Height Range: 24.75" - 31.75"
holder dimensions
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
socket to socket length
4.66"
hole pattern
See Drawing
plate size
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
2.641 kg
