RAM® 5" Square Post Clamp Mount with 100x100mm VESA Plate

£128.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Print Details
RAM® 5" Square Post Clamp Mount with 100x100mm VESA Plate
Part#:RAM-246-247U-5 UPC:793442944499

Overview

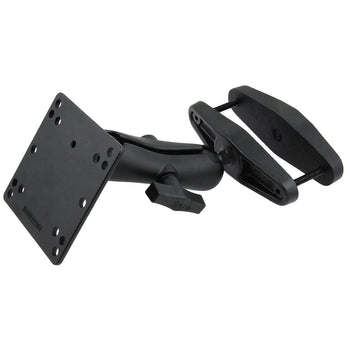

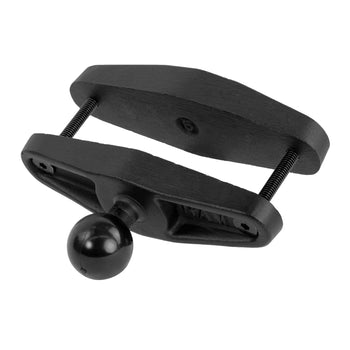

The RAM-246-247U-5 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 5" wide.

hardware included

(4) .312" x .187" Shoulder Washers
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts

clamp range

5" max width

socket to socket length

4.66"

hole pattern

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

1.27 kg
