RAM® 2.5" Square Post Clamp Mount with 100x100mm VESA Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

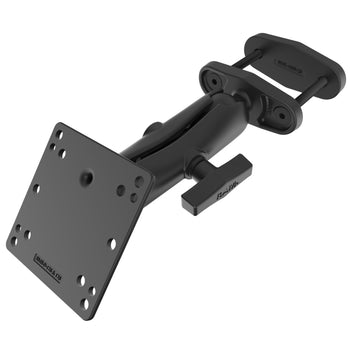

The RAM-246-247U-25 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 2.5" wide.
Components
hardware included
(4) .312" x .187" Shoulder Washers
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
clamp range
2.5" max width
socket to socket length
4.66"
hole pattern
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.89 kg
