RAM® X-Grip® Wheelchair Seat Track Mount for 9"-11" Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

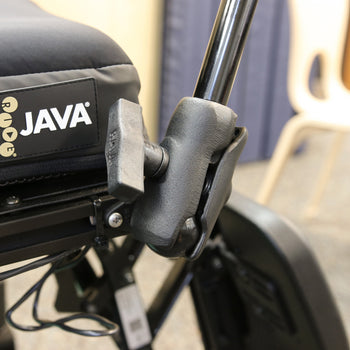

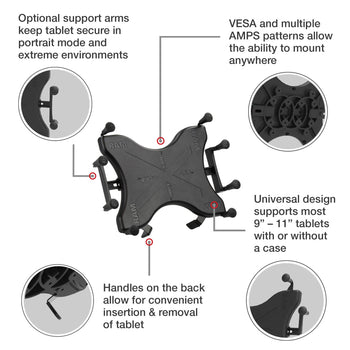

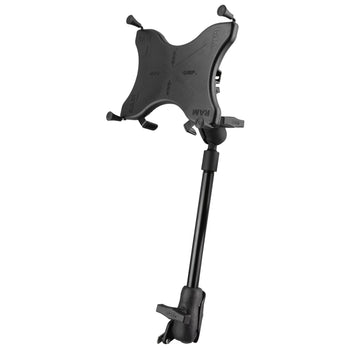

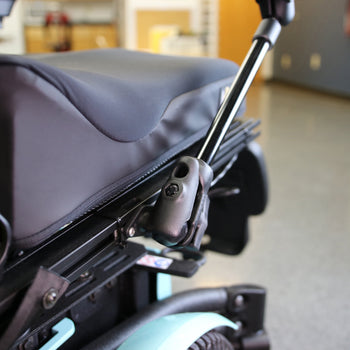

This kit includes a C size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, pipe extension, and double socket arm, connect the RAM® X-Grip® universal holder for 9”-11” tablets. The spring-loaded RAM® X-Grip® provides a perfect fit for your tablet and can be easily adjusted to the ideal position.
Components
hardware included
Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
holder dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
t bolt dimensions
Large: .48" x .95"
Small: .375" x .593"
hole pattern
2-Hole AMPS 1.912"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Retail Bag
Weight
1.277 kg
