RAM® Wheelchair Seat Mount for Xbox Adaptive Controller
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

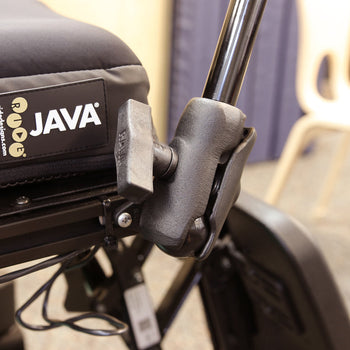

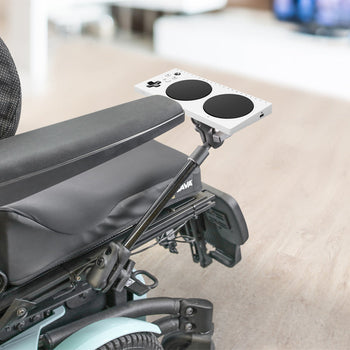

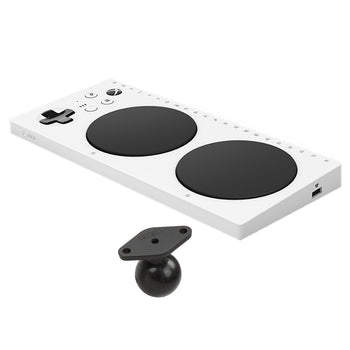

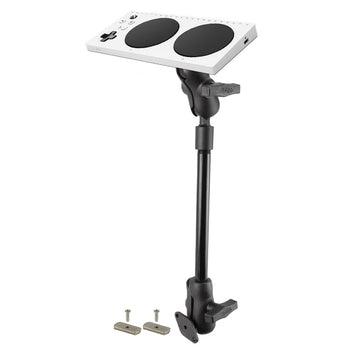

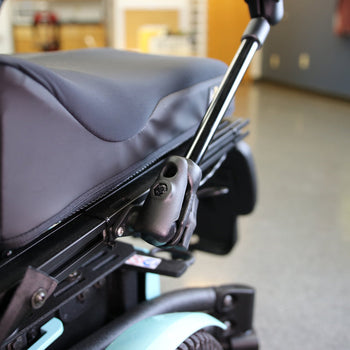

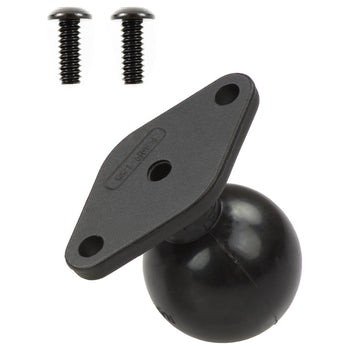

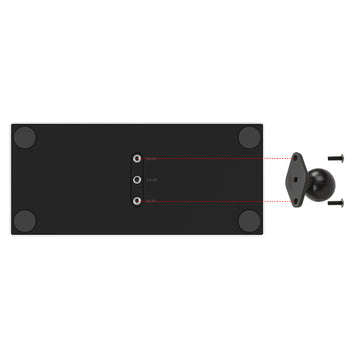

Mount the Microsoft Xbox Adaptive Controller to your wheelchair with this RAM® Wheelchair Seat Mount (RAM-238-WCT-9-MS2). The controller attaches directly to the included RAM® diamond base adapter with 1.5” ball and double socket swivel arm, allowing for a 90-degree tilt so you can angle the adaptive controller exactly where you need it. When you're not using the Xbox Adaptive Controller, swap it out with any compatible RAM® 1.5” ball base, such as the RAM® X-Grip® cradle for phones and tablets. Attaches to most wheelchair arm track systems including Invacare, Permobil, and Quickie, as well as any other universal mounting point with the included universal hardware pack. This inclusive gaming kit includes hardware and a hex wrench for mounting an Xbox Adaptive Controller.

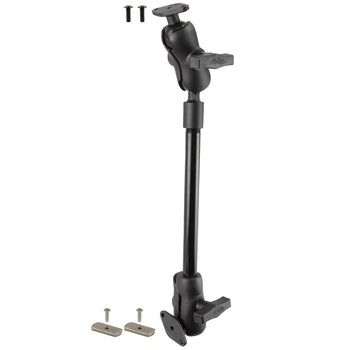

Components
hardware included
(2) #10-24 x 1/2" Machine Screws
(1) 5/32" Hex Key Wrench
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
t bolt dimensions
Large: .48" x .95"
Small: .375" x .593"
hole pattern
2-Hole AMPS 1.912" (both plates)
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Retail Bag
Weight
0.86 kg
