RAM® Drill-Down Heavy Duty Mount for weBoost
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features
- Kit includes 3/8"-24 x .375" Threaded RAM® Tough-Ball™ that screws into thread adpater of the weBoost antenna, C size short length socket arm and C size RAM® Diamond Ball base for flat surface drill-down mounting such as a rear bumper, spare tire carrier, or antenna brackets
- The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

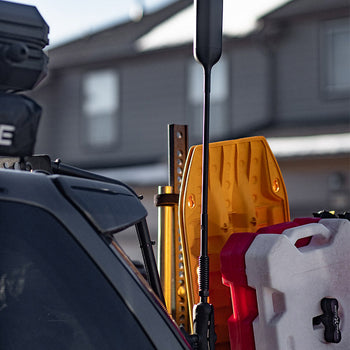

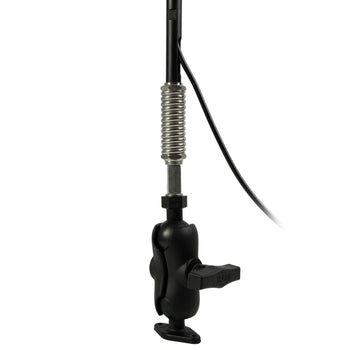

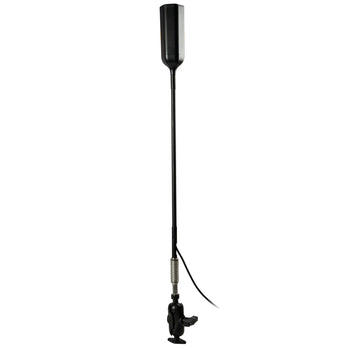

This weBoost mounting kit includes a 3/8"-24 x .375" threaded RAM® Tough-Ball™ that screws into thread adapter of the weBoost antenna, a C size short length socket arm and a C size RAM® Diamond Ball base for flat surface drill-down mounting such as a rear bumper, spare tire carrier, or antenna bracket. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with the Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.
socket to socket length
2.5"
hole pattern
2-Hole AMPS 1.912"
thread pitch
3/8"-24 x .375"
plate size
2.43" x 1.31"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.46 kg
