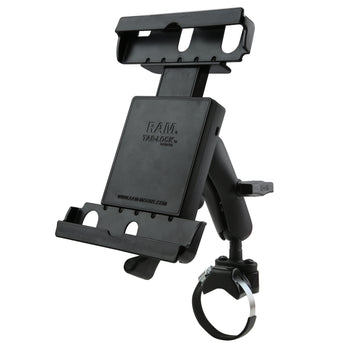

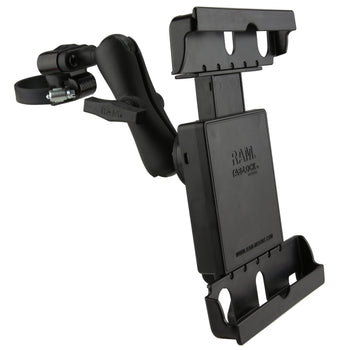

RAM® ATV/UTV Rail Mount for 9"-10.5" Tablets with Heavy Duty Cases
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
This heavy duty ATV/UTV mount is the perfect solution for securing most 9" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt. The included RAM® Tab-Lock™ tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Components
hardware included
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions
Height Range: 9.25" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
clamp range
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
4.66"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
1.27 kg
