RAM® Track Ball™ Mount for Humminbird Helix 7
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

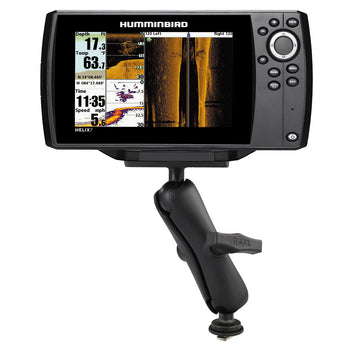

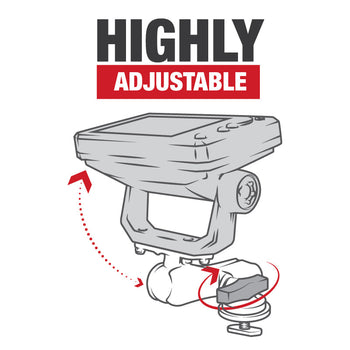

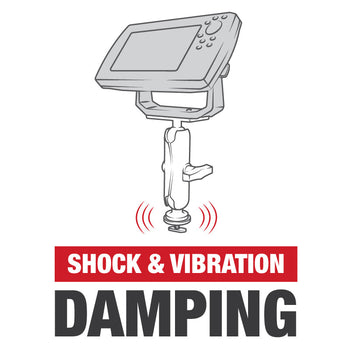

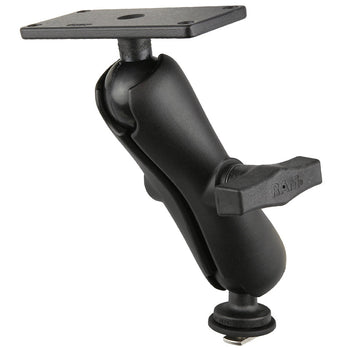

The RAM-202-24-354-TRA1U consists of a double socket arm mount, Track Ball™ base and 2" x 4" rectangular plate. The unique rubber ball and socket technology dampens shock and vibration while offering high adjustability to achieve the perfect viewing angle. Compatible with any RAM Tough-Track™ system.
Components
hardware included
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
product dimensions
Overall Height: 7.5"
t bolt dimensions
.48" x .95"
socket to socket length
4.66"
hole pattern
1.5" x 3.5"
plate size
2" x 4"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.523 kg
