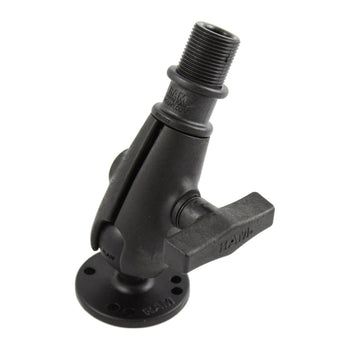

RAM® VHF Antenna Mount with 1"-14 Threaded Post
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Features
- Complete flat surface, drill-down mount for VHF antennas with a 1"-14 thread pitch
- Includes C size single socket arm with octagon socket, 2.5" diameter flat surface drill-down base, and a male 1"-14 threaded post for VHF antennas; RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
The RAM antenna mount is designed to hold most VHF and similar antennas. The patented rubber ball and socket system securely mounts the antenna while allowing for almost infinite adjustment. Mount the antenna on a horizontal or vertical surface or anywhere in between. The ball base is made from a lightweight marine grade aluminium with powder coat. The ball socket and male 1" -14 threaded post are made from high strength composites designed for prolonged outdoor use. The RAM antenna mount will work with any standard antenna that has a 1" -14 threaded interface.
Components
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.264 kg
