RAM® Locking Double Ball Mount with 100x100mm VESA Plate - C Size Long

Part#: RAM-111LU-D-246
UPC:793442929731

£113.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

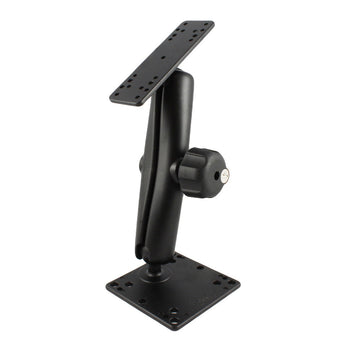

This kit includes a 100mm x 100mm Vesa mounting plate, a 9 inch double socket arm with keyed lock and a 6.25 x 2 inch mounting plate on top for marine GPS, CB radios, ham radios, Gimbal brakets and more.

hardware included

(4) .312" x .187" Shoulder Washers
(2) Keys

product dimensions

Overall Height: 7.35"

socket to socket length

8"

hole pattern

See Drawing

plate size

Rectangular Plate: 6.25" x 2"
VESA Plate: 4.75" x 4.75"

ball size

C Size (1.5")

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

1.305 kg

Additional Information

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
