RAM® 6" Curved Swing Arm for Horizontal/Vertical Mounts
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

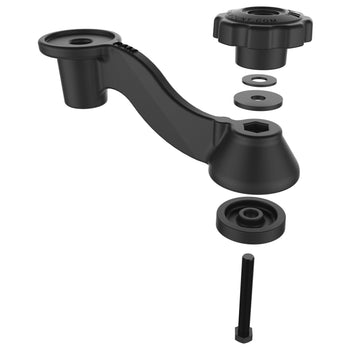

The RAM-109-1AP is a bent 6" long Arm Extension for the RAM 109 series. This arm includes a 3" long bolt, washers and tightening knob. This swing arm will connect directly to either the RAM-109H-B Horizontal Base or the RAM-109V-B Vertical Base. The 3" bolt will allow the swing arm to connect to a RAM-109 base, and the other end of this mount will connect to either a second Swing Arm with 4" Bolt RAM-109-1A or RAM-109-1ATU or a Rectangular Pivoting Plate RAM-111BT.
hardware included
(1) 3/8"-16 x 3" Hex Bolt
(1) 2" Rubber Washer
(1) 1.25" Nylon Washer
(1) 3/8" Stainless Steel Washer
(1) 3/8"-16 Knob
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.414 kg
