RAM® Strap Hose Clamp Mount with 100x100mm VESA Plate

Part#: RAM-108B-246U
UPC:793442935107

£64.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

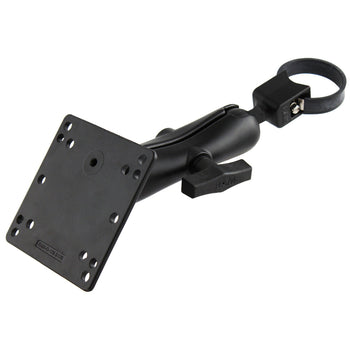

The RAM-108B-246U consists of a strap clamp 1.5" diameter ball base, standard length double socket arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner.

Components

hardware included

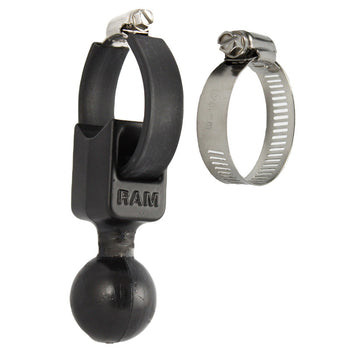

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
(4) .312" x .187" Shoulder Washers

product dimensions

Overall Height: 9"

clamp range

1" - 2.1" diameter

socket to socket length

4.66"

hole pattern

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.764 kg
