RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Short
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for more information.
You can order the individual component parts below or we'll try to offer a suitable alternative.

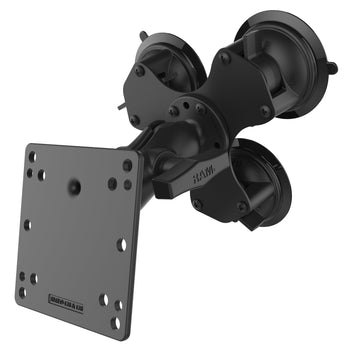

The RAM-101U-B-SPX1 consists of a triple 3.3" suction cup locking base, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm.
Components
hardware included
Assembly Hardware
(4) .312" x .187" Shoulder Washers
suction size
(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length
2.5"
hole pattern
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
Powder coated steel
High strength composite
packaging type
Poly Bag
Weight
1.018 kg
