RAM® Universal Double Ball Mount for Crown Work Assist® - Short

Part#: RAM-101U-B-CRO1
UPC:793000000000

£60.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

Features

  • Crown double ball mount with short C Size arm contains mounting holes on the base aligned to work with Crown Work Assist® clamp accessories
  • Compatible with RAM® C Size components
  • Made of powder-coated steel and marine-grade aluminium
  • Backed by a lifetime warranty

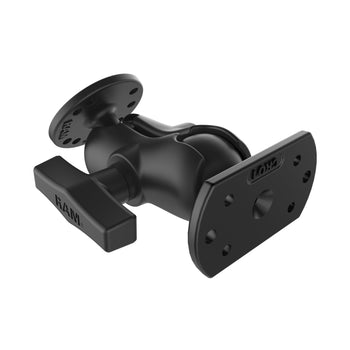

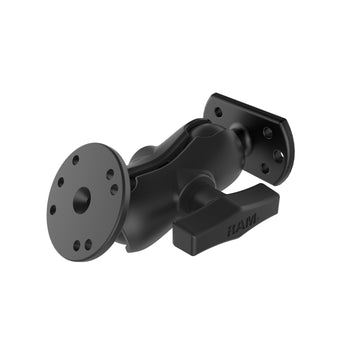

This Crown double ball mount comes with a short C Size arm, Crown ball base and 2.5" round ball adapter with universal AMPS hole pattern aligned to work with Crown Work Assist® clamp accessories. This double ball mount is the ideal mounting solution for forklifts and other Material Handling applications.

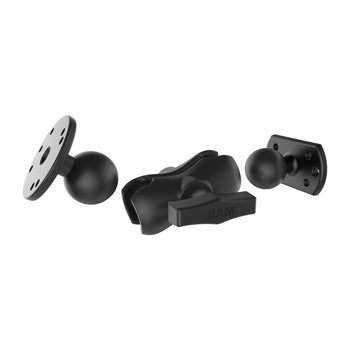

Components

product dimensions

Overall Height: 5.225"

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.45 kg
