RAM® 3" Square Post Clamp Mount with Round AMPS Plate - Medium Arm
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes 3" clamping base for posts and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

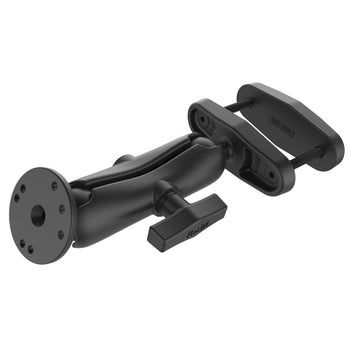

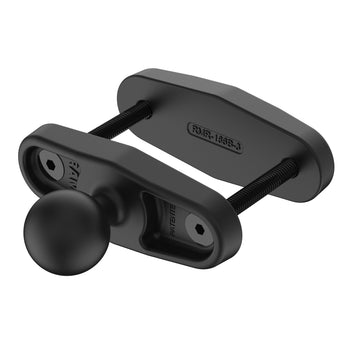

The RAM-101U-247-3 consists of a 6 inch double socket arm, round 2.5" diameter round base with the universal AMPS hole pattern and 3" clamp base. The clamp base will wrap around a maximum width of 3" and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
Components
hardware included
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
product dimensions
Overall Height: 7.85"
clamp range
3" max width
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.825 kg
