RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features
- Spring-loaded holder secures 7"-8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
- 2.10" x 2.60" steel backing plate attaches to a variety of RAM® Mounts ball bases
- Ball and socket technology allows for near-infinite adjustability
- Backed by a lifetime warranty

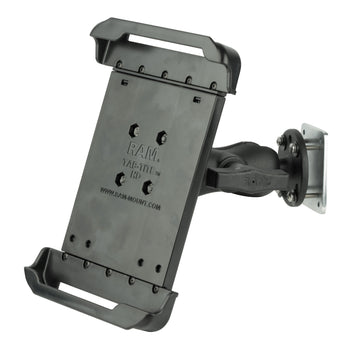

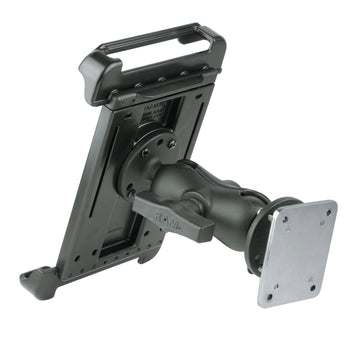

The RAM® Tab-Tite™ bundle is a rugged mount including the RAM® Tab-Tite™, RAM® Universal Double Ball Mount with Two Round Plates, and RAM® Backing Plate Adapter. The RAM® Tab-Tite™ spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 2.10" x 2.60" steel backing plate with #8-32 threaded holes attaches to a variety of RAM® Mounts ball bases.
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
holder dimensions
Height Range: 8.32" - 10.92"
Width Range: 4.43" - 5.3"
Depth Range: .13" - .62"
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
Powder coated steel
packaging type
Poly Bag
Weight
0.9 kg
