RAM® Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to order a suitable.
Swipe to see more images.
Features
- Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

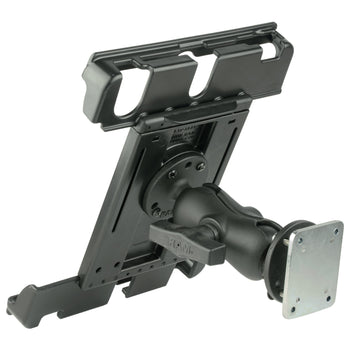

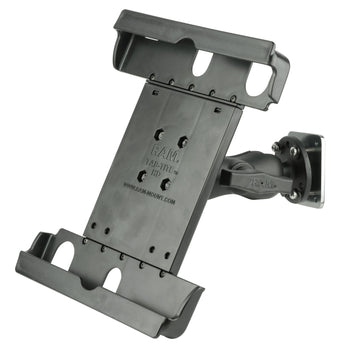

This rugged dashboard tablet mount consists of a RAM® Tab-Tite™ spring loaded holder for any 9"-10.5" tablets with a case, medium C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
holder dimensions
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
Powder coated steel
packaging type
Poly Bag
Weight
0.841 kg
