RAM® Double Ball Mount - aluminium Backing Plate Short
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Features
- Drill-down double ball mount with 2.5 round plate and 1.5" x 2" rectangular plate connects to RAM® components containing the universal AMPS hole pattern
- Included C size 1.5" RAM® rubber ball and medium double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

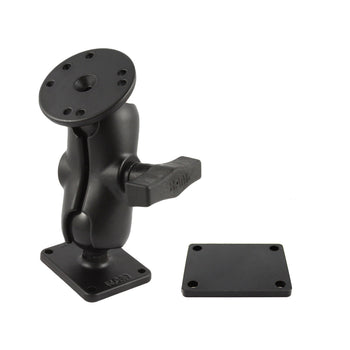

The RAM-101-B-SAE1 consists of a 3.56" double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit also comes with a backing plate.
Components
hardware included
(1) 2" x 2.5" aluminium Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip
product dimensions
Overall Height: 5.225"
socket to socket length
2.5"
hole pattern
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"
plate size
Round Plate: 2.5" Diameter
Rectangular Plate: 2" x 2.5"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Box
Weight
0.57 kg
