RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

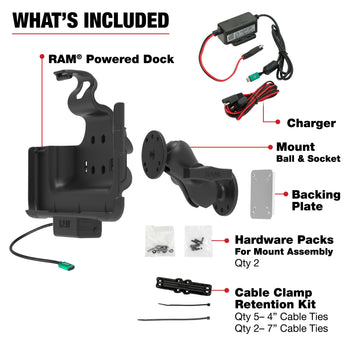

- Bundle includes the RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Powered dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in the RAM® Skin™ or Samsung OEM case
- Next gen charging with integrated pogo pin docking contacts that match the Tab Active4 Pro's pogo pads for a fumble-free charging experience and port-protection
- Backed by a 3-year warranty

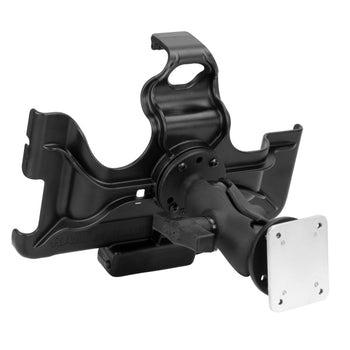

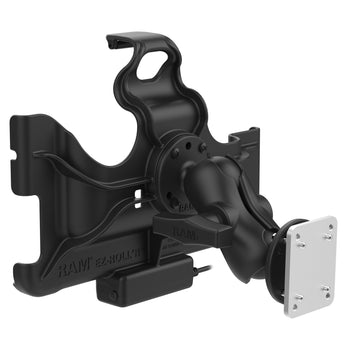

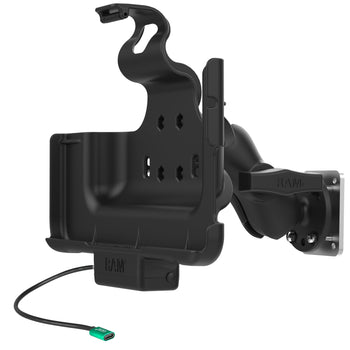

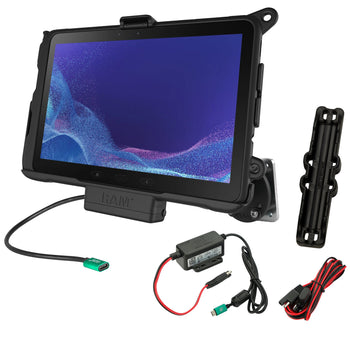

The RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active4 Pro in your fleet. It contains one RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® Powered Dock is backed by a 3-year warranty.
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Hardwire Charger
socket to socket length
3"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Steel
Marine-grade alluminum
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Overvoltage/Load Dump Compliance: Meets SAE J-1113
FCC, CE, UKCA, IC
certifications
E-Mark Certification
Integrated Short Circuit Protection
WEEE and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
IEC/UL 62368-1
Weight
1.16 kg
