GDS® Power + Dual USB Dock with Latch for Zebra ET4x 8" Tablet

Part#: RAM-GDS-DOCKNLL-ZE20PD2U
UPC:793442017070Patented & Pats. Pend.

£196.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

.

Swipe to see more images.

Features

  • Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested

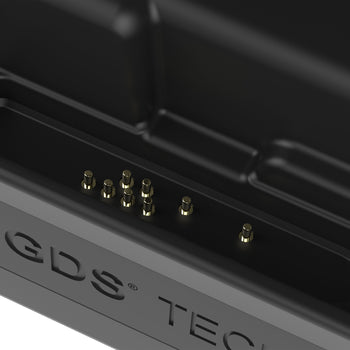

  • When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

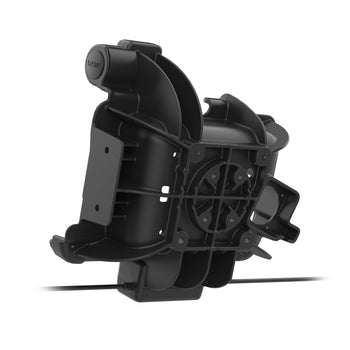

  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

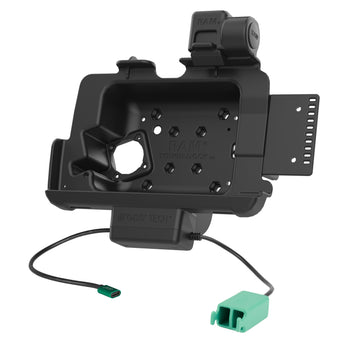

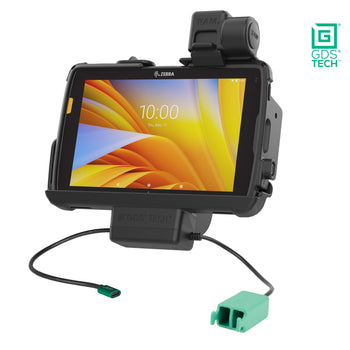

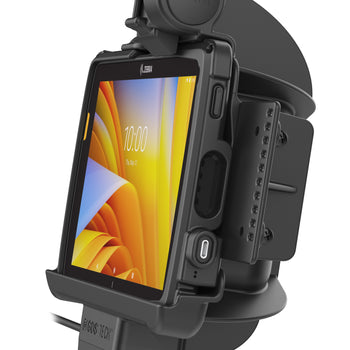

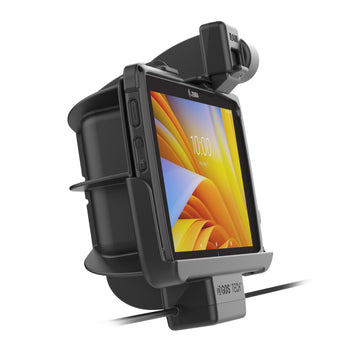

The GDS® Power + Dual USB Dock with Latch for Zebra ET4x 8" Tablet (RAM-GDS-DOCKNLL-ZE20PD2U) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 8" is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®

hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 20V @ 3A

power output

60W

input connector

USB Type-C

input cable length

215mm

output connector

(2) USB 2.0 Type A

output cable length

215mm

peripheral output

900mAh (per port)

transfer speed

12Mbps

certifications

RoHS
WEEE
FCC
CE
ICES
UKCA

Warranty

3 year warranty

Weight

0.694 kg

Additional Information

IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
