RAM® Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features

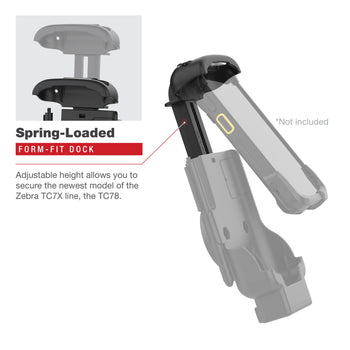

- Spring-loaded key-locking form-fit dock perfectly secures the Zebra TC73 and TC78 handheld PC; provides power through 1.25-meter long DC connector

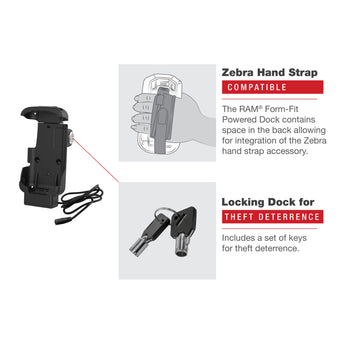

- Compatible with the Zebra hand strap accessory

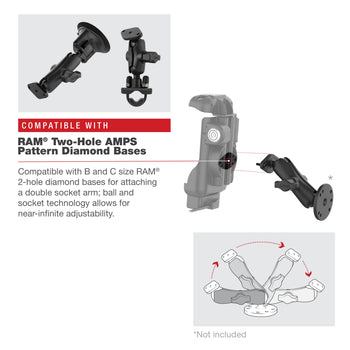

- Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

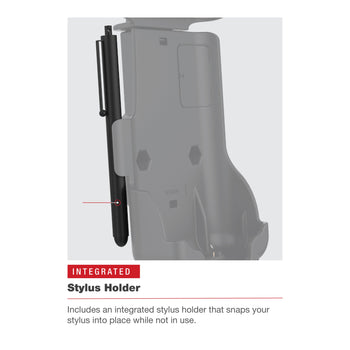

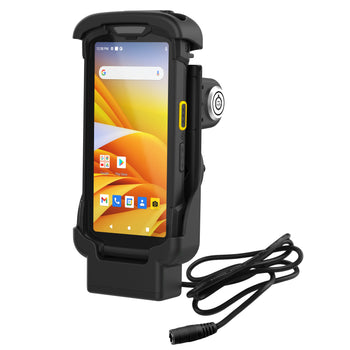

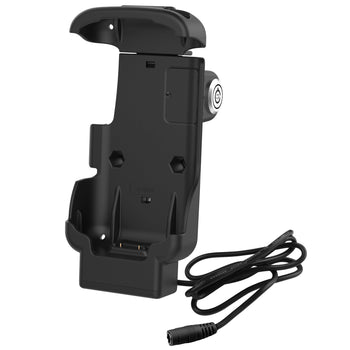

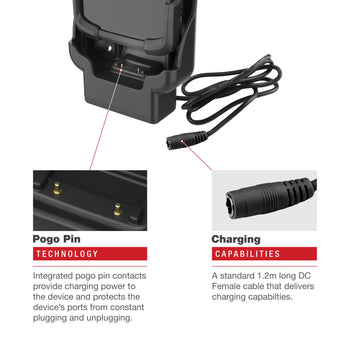

This key-locking, spring-loaded, form-fit, powered dock (RAM-HOL-ZE17L-1U) allows you to secure the Zebra TC73 and the TC78 rugged handheld PC. Power to the device is delivered via a 1.2m long female 5.5mm DC barrel connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included
(2) Keys
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
5.5mm DC Connector
input cable length
1.25 Meters
Warranty
3 year warranty
Weight
0.37 kg
