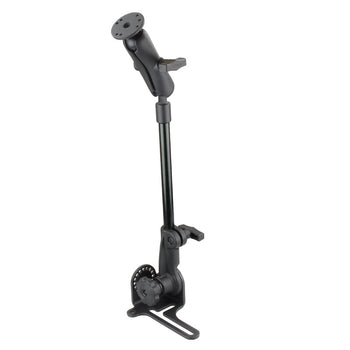

RAM® Pod™ HD Reverse Vehicle Mount with 12" Pipe
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Universal vehicle mount attaches to seat rail without any drilling necessary; ideal for tablets and small laptops

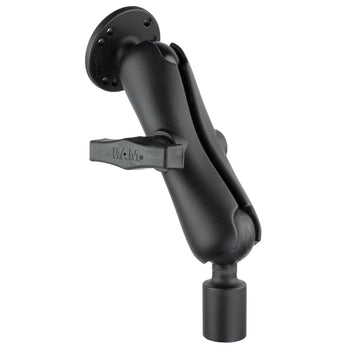

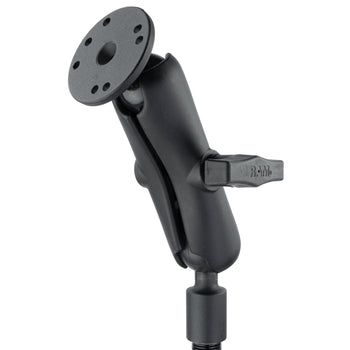

- Round plate features C size 1.5" RAM® rubber ball and industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

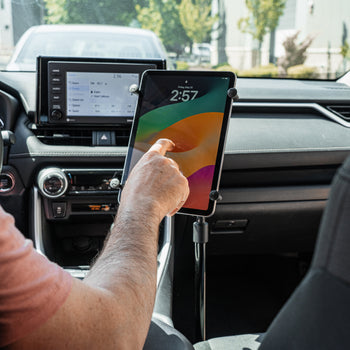

Blending the best of versatility, strength, and installation ease, the RAM® Pod HD™ is a workhorse for fleet transportation and serious consumers alike. Compatible with a wide range of vehicles and easy to install, the RAM® Pod HD™ is an ideal solution for mounting tablets, small laptops, and other similar devices. Requiring minimal space in the vehicle cab, it can be removed quickly and without the use of tools. The versatility of the RAM® Pod HD™ makes it perfect for use in mixed vehicle fleets, consumer vehicles, and other applications that require a robust mounting platform for your device.
Components
hardware included
Assembly Hardware
Stabilizer Foot
product dimensions
Height Range: 18.75" - 25.75"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine-grade aluminium
packaging type
Poly Bag
Weight
2.34 kg
