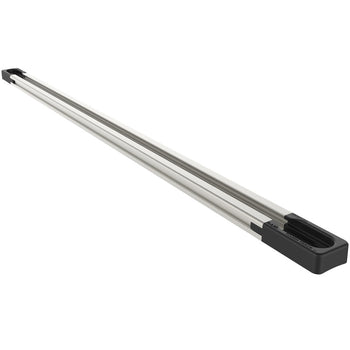

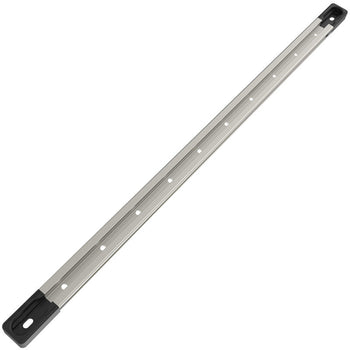

17" Modular aluminium RAM® Tough-Track™
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- 17" of usable aluminium track for track mounts: overall length of 20"
- RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included

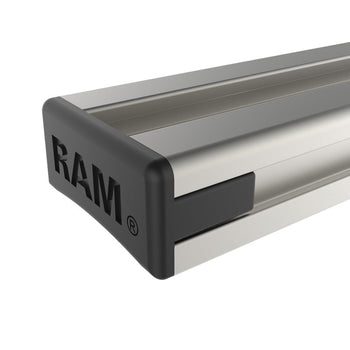

- Modular top-loading end caps allow for additional track extensions and 90-degree connectors

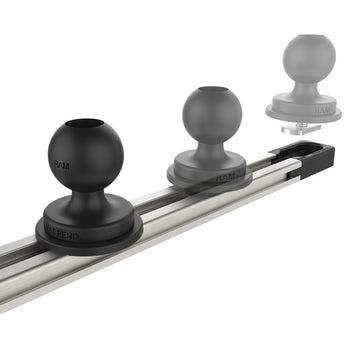

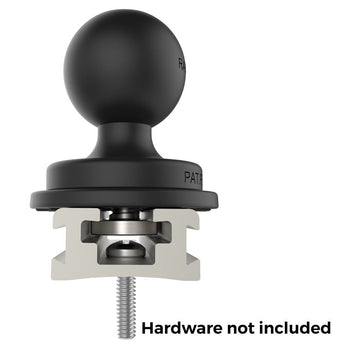

- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
- Backed by a lifetime warranty
With the RAM Tough-Track™, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks and more. The extruded aluminium version of the RAM Tough-Track can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminium provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-17U features 17” of usable track length (aluminium portion), while the included top loading end caps add about 1.5” in length to each end (3” of additional length). Using the end caps allows for two installation options: either use both top loading end caps to create insertion points on both ends of the track, or use one top loading end cap and close the opposite end with the included flush end cap. The Extruded aluminium Tough-Track is compatible with the RAM Center Loader and 90 Degree Connector, as well as a wide variety of RAM track bases to attach devices like action cameras, fishing rods, phones and tablets.
product dimensions
Overall Length: 20"
Overall Width: .9"
Track Thickness: .43"
Inside Track Length: 17"
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.32 kg
