GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A11+
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features

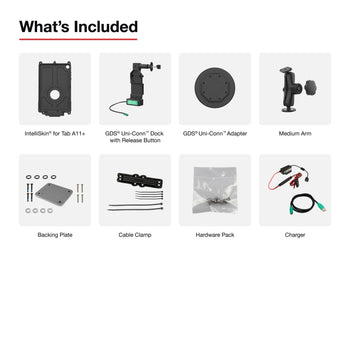

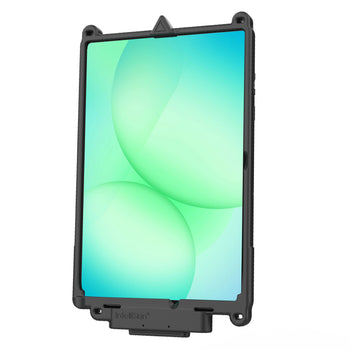

- Bundle includes the GDS® Uni-Conn™ key-locking dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab A11+, C size double ball mount with medium arm, backing plate adapter, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, and cable clamp
- Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power
- Uni-Conn™ dock features a quick-release button for easy device insertion and removal

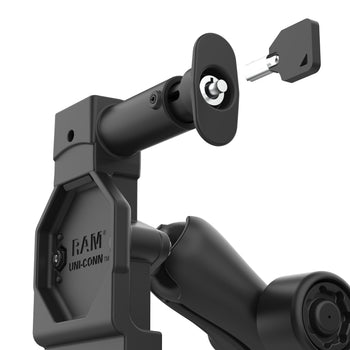

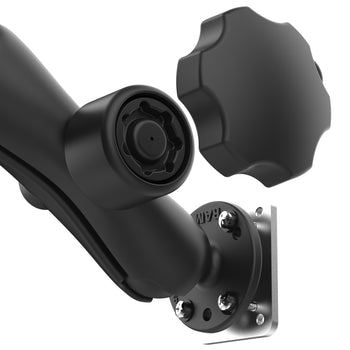

- Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence
- Backed by a 3-year warranty

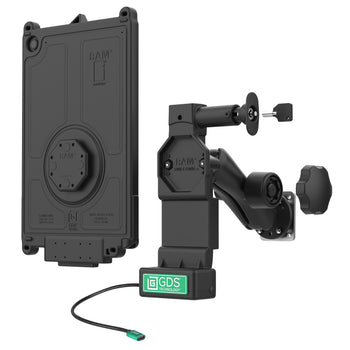

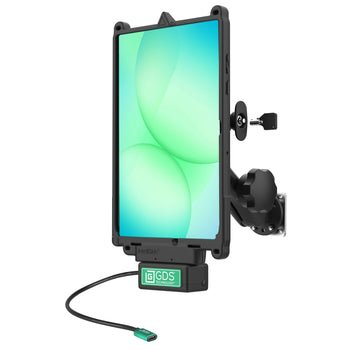

The GDS® Uni-Conn™ Locking Vehicle Bundle with Release Button for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT2) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ locking dock with right lock, Uni-Conn™ adapter, IntelliSkin® for the Tab A11+, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™
Components
hardware included
Assembly Hardware
(2) Keys
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamps
(1) USB Cable

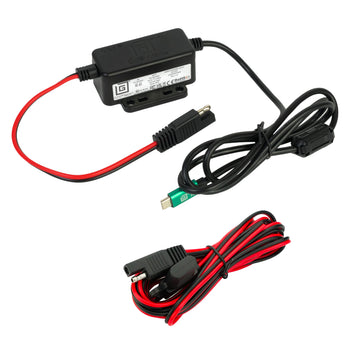

(1) Vehicle Hardwire Charger
socket to socket length
4.66"
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
input voltage
10-30VDC
output voltage
5-15V @ 3A
power output
45W
output current
2.5A max
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty
3 year warranty
Weight
1.55 kg
