GDS® Vehicle Dock for Samsung XCover7 Pro/6 Pro with IntelliSkin®
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Spring-loaded powered dock for IntelliSkin® for Samsung XCover7 Pro & 6 Pro

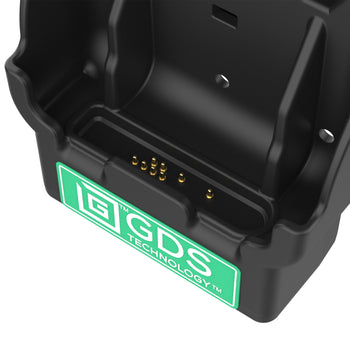

- Power delivered through integrated pogo pin technology via USB-C connector
- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

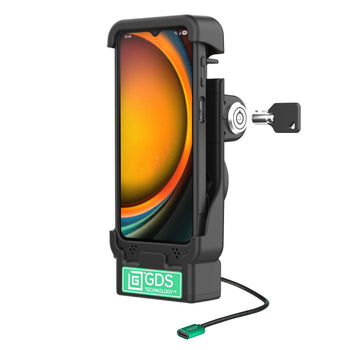

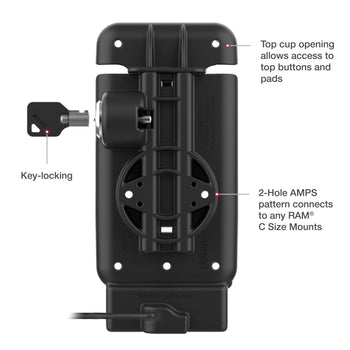

The GDS® Vehicle Dock for Samsung XCover7 Pro/6 Pro with USB-C IntelliSkin® (RAM-GDS-DOCKL-V15-SAM84U) is a rugged dock that will meet and exceed the demands of modern workflows, featuring integrated pogo pins that perfectly align with IntelliSkin® for Samsung XCover7 Pro & 6 Pro. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device. The back cavity of the dock accommodates ergonomic accessories secured to the back of the device. An integrated cutout on the top allows for the ability to access buttons, ports, or scanners without removing the device from the dock. The key lock provides peace of mind and theft deterrence in high-traffic environments. Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter. Always Protected. Always Connected.®
hardware included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
input cable length
380mm
Warranty
3 year warranty
Weight
0.38 kg
