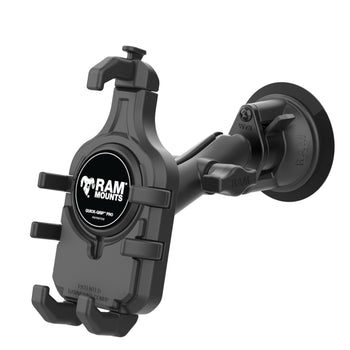

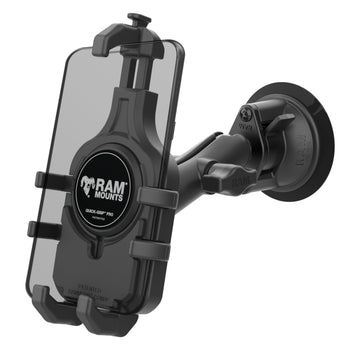

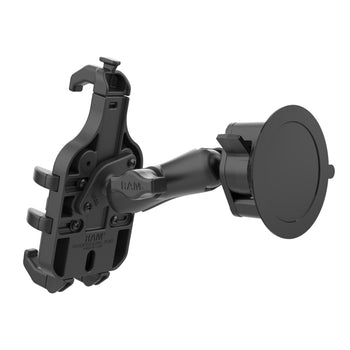

RAM® Quick-Grip™ Pro Phone Mount with Twist-Lock™ Suction Cup - Medium
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

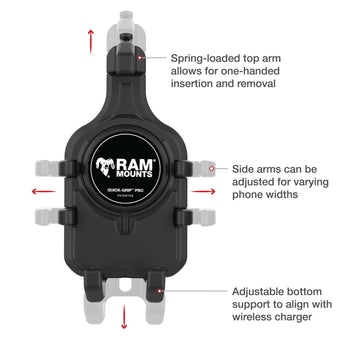

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

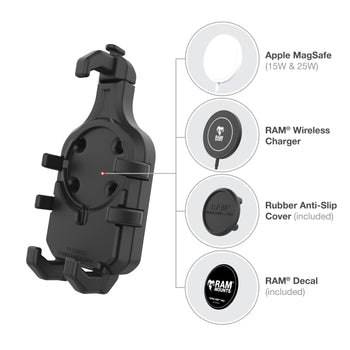

- centre cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
- Comes with optional device tether for open cockpit environments
- Backed by a lifetime warranty*

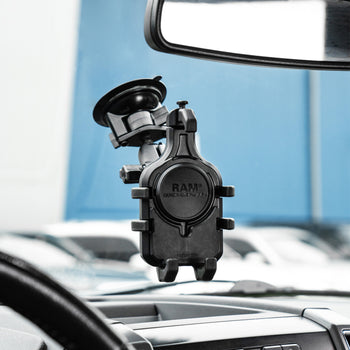

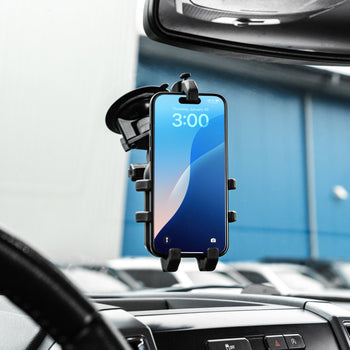

The RAM® Quick-Grip™ Pro Phone Mount with Twist-Lock™ Suction Cup - Medium (RAM-B-166-PD5U) is ideal for vehicle windshields and features the next evolution of the RAM® Quick-Grip™ series. The phone holder is re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It also features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surfaces. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

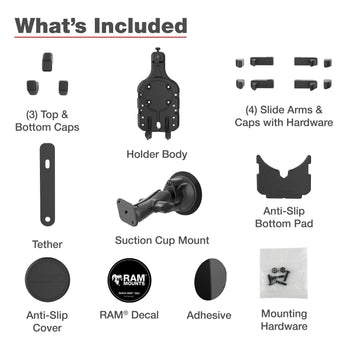

Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.49 kg
