GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

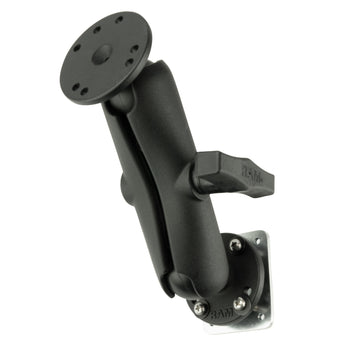

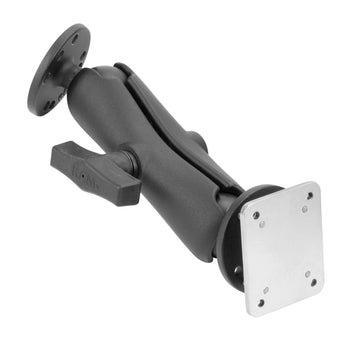

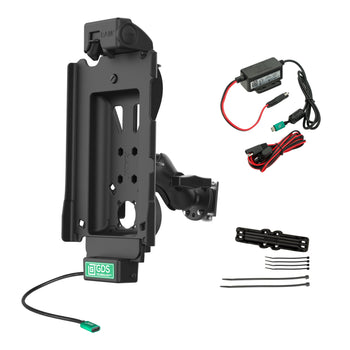

- Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball, backing plate adapter and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

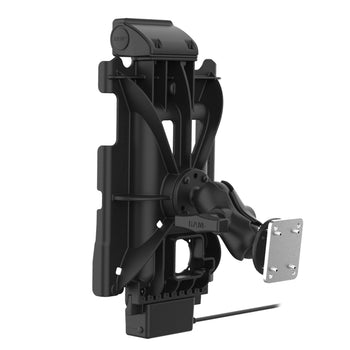

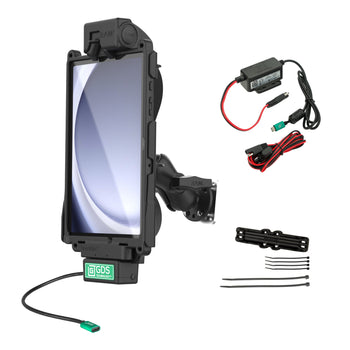

The GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-101B2-SAM88CP-V7CU) is ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A9+. This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB Type-C connector, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
input voltage
10-30VDC
output voltage
5.42-9VDC
output current
2.5A max
input connector
Bare Wire
input cable length
2.5 Meters
output connector
USB Type-C Male
output cable length
1 Meter
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty
3 year warranty
Weight
1.796 kg
