RAM® EZ-On/Off™ Bicycle Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Dual strap base attaches to a variety of rail sizes; diamond adapter swivels to achieve an ideal viewing angle for your device
- Diamond adapter features industry-standard AMPS hole pattern and connects to a variety of RAM® device holders
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

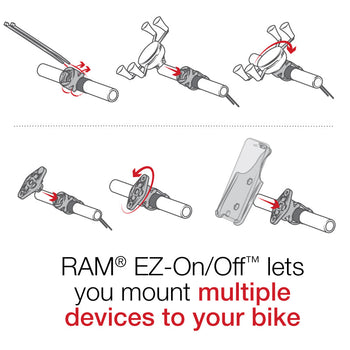

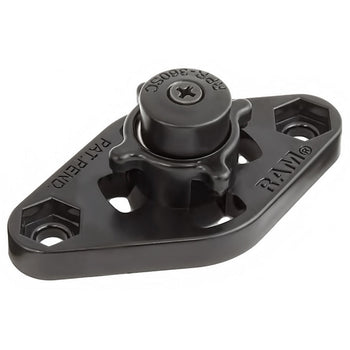

The RAP-274-1U consists of the RAM® EZ-ON/OFF™ dual strap base and swivel diamond adapter. Adjust the zip ties for attachment to a variety of rails, from a minimum of .5" in diameter. With a press of the diamond adapter, the RAM® EZ-ON/OFF™ system allows for the quick release of the diamond adapter from the base. When connected, the diamond base can rotate to your desired position. The hole pattern found on the diamond adapter will connect to a large variety of RAM® components, including those with the industry-standard AMPS hole pattern.
Components
hardware included
(1) Flat Rubber Spacer
(1) Angled Rubber Spacer
(1) 3.06" Rubber Pad
(2) 7" Cable Ties
clamp range
.5" - 1.68" diameter
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
Weight
0.05 kg
