RAM® 14" Pedestal Mount with Dual 75mm VESA Adapters
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Mount two devices or monitors opposite each other with dual 75mm VESA Heads

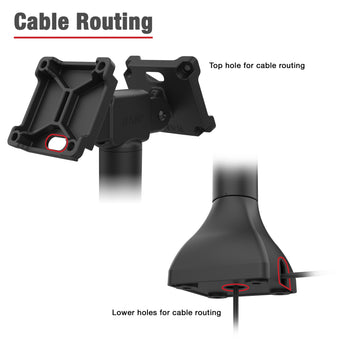

- Route cables through the pedestal for a clean and organized look
- 180° tilt range, adjust each head for ideal viewing or operational positioning
- 14-inch pedestal provides a sturdy structure for industrial and commercial use
- Backed by a lifetime warranty
The RAM® 14" Pedestal Mount with Dual 75mm VESA Adapters (RAP-D11H2-14-V75) provides a sturdy and streamlined way to mount two displays or devices back-to-back on a single pedestal. Each head includes a 75mm VESA plate with integrated cable management cutouts, allowing power and data cables to route neatly through the pedestal and out the base for a clean, professional workspace. With 180° tilt adjustment on each head, users can easily achieve optimal viewing angles—whether the setup is for shared workstations, control panels, or fleet monitoring environments. The drill-down base delivers a secure, fixed installation ideal for high-traffic or semi-permanent setups. Durable, adaptable, and built for precision alignment, this dual-mount solution brings both functionality and visual organization to any business space.
hardware included
Assesmbly Hardware
product dimensions
Height from Base to Tilt Bolt: 13.73"
Base Width: 3.8"
Base Depth: 3.8"
hole pattern
75 x 75mm VESA
materials
High strength composite
packaging type
Box
Weight
1.19 kg
