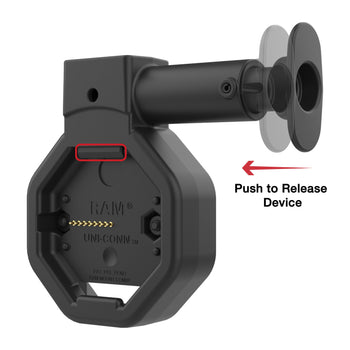

GDS® Uni-Conn™ Powered Wall Dock with PoE & Release Button
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
- JST connector enables high-speed charging capabilities
- Installs directly over standard outlet boxes
- Backed by a 3-year warranty
The GDS® Uni-Conn™ Powered Wall Dock with PoE & Release Button (RAM-GDS-DOCK-W5-U5-POEU) is a versatile snap-in wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. The snap-in attachment method allows for quick, one-handed device removal. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included
(1) PoE to Power Delivery Charging Module
(2) #6-32 x 7/8" Machine Screws
hole pattern
2-Hole: 3.281" (Standard Electrical Box)
materials
High strength composite
packaging type
Box
power specifications
Required Input: POE+ (802.3at) or greater
output voltage
PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
power output
20W Max
input connector
JST Connector
input cable length
800mm
transfer speed
10/100Mbps
Warranty
3 year warranty
Weight
0.35 kg
