RAM® Twist-Lock™ Composite Suction Mount with RAM® Quick-Grip™ Holder
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.

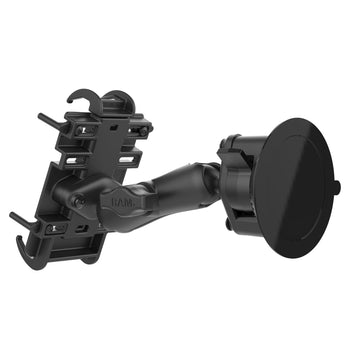

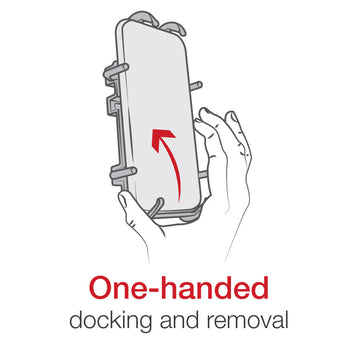

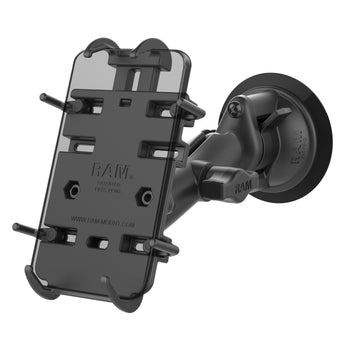

The RAM Quick-Grip™ with Twist-Lock™ Suction Cup consists of a 3.3" diameter suction base, composite double socket arm and spring loaded cradle for supporting most phones. The Twist-Lock™ Suction Cup is designed to have a strong hold on any windshield, glass and non-porous surface. The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

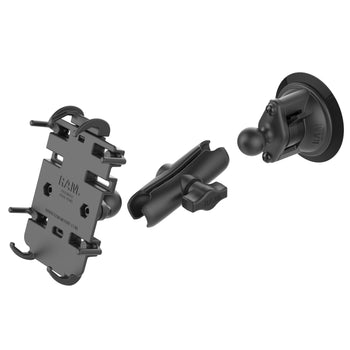

Components
hardware included
Assembly Hardware

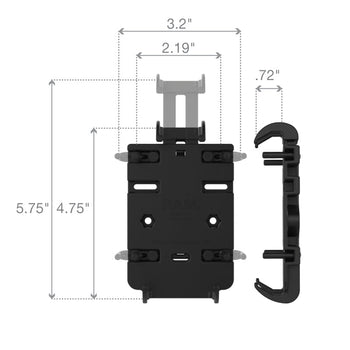

holder dimensions
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
packaging type
Poly Bag
Weight
0.318 kg
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
