RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Access to speakers, mics, and headphone jack remain while device is docked
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty

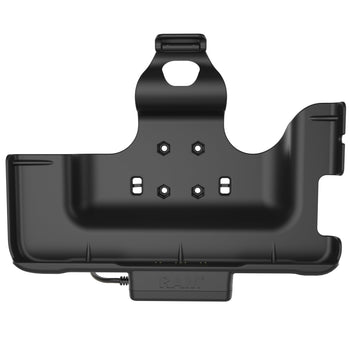

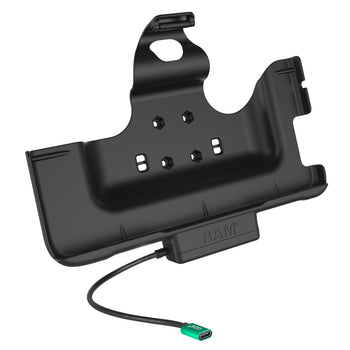

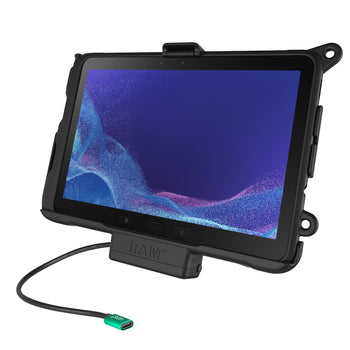

The RAM® USB-C Powered Dock for Samsung Tab Active5 Pro & Tab Active4 Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

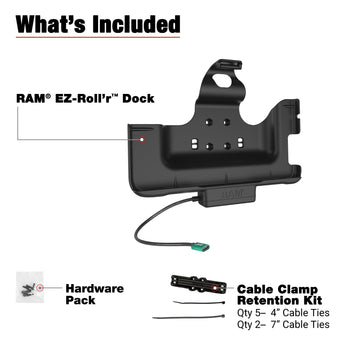

Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.323 kg
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
