GDS® Locking PTT Speaker Mic Kit for XCover7 Pro/6 Pro - Kodiak
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- GDS® Dock™ uses an integrated pogo pin connector to provide high-speed charging
- Locking knobs provide theft deterrence for added security
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warrant

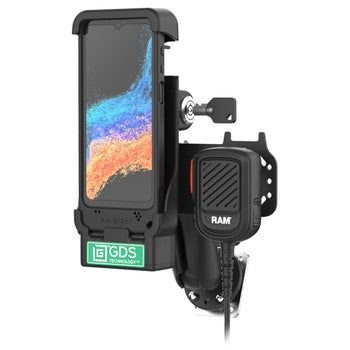

The GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - Kodiak (RAM-GDS-DOCKL-V15-SAM84-RSM5) delivers a complete solution for enabling reliable Push-to-Talk over Cellular (PoC) communication. Built specifically with the rugged Samsung XCover6 Pro in mind, this kit includes a form-fit GDS® Dock™, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). The RSM provides dependable push-to-talk functionality through a USB-C connection, optimized for Kodiak.

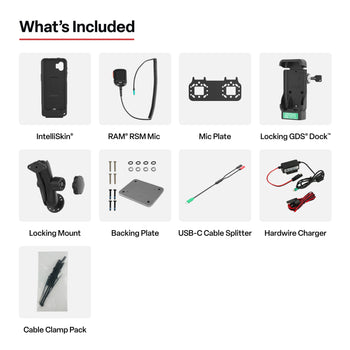

Components
hardware included
(1) IntelliSkin® for XCover7 Pro & 6 Pro
(1) GDS® Dock™ (Locking)
(1) Remote Speaker Mic with Mounting Plate
(1) Mic Bracket
(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(1) USB-C Splitter Cable
(3) Cable Clamp Kits
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Box
power specifications
Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
input cable length
380mm
Weight
2.61 kg
