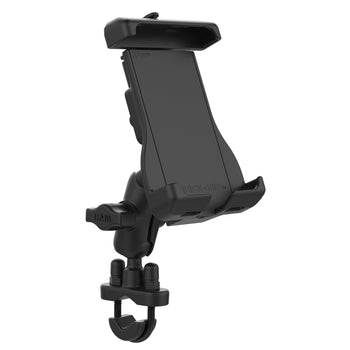

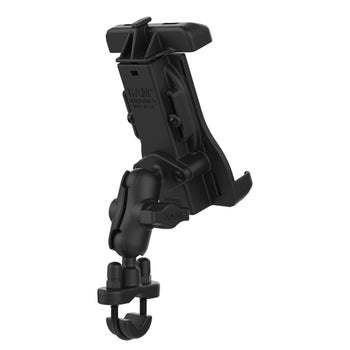

RAM® Quick-Grip™ Handlebar Mount for for iPhone 12 Series + MagSafe

Part#: RAM-B-149Z-A-UN15WU
UPC:793442025068Patented

£81.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

Features

  • Kit includes RAM® Quick-Grip™ Holder for Apple MagSafe Charger, B size diamond ball base, short double socket arm and RAM® U-Bolt base; MagSafe Charger not included
  • Compatible with iPhone 12 series, Pro and Pro Max, with or without Apple MagSafe phone cases; not compatible with standard phone cases

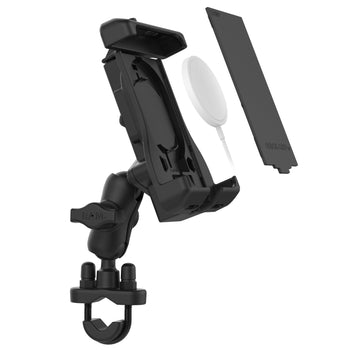

  • RAM® Quick-Grip™ Holder has removeable backing plate to adjust the positioning of the MagSafe Charger
  • U-bolt base includes bar spacer and accommodates rails from .5" to 1.25" in diameter
  • Backed by a lifetime warranty

The RAM® Quick-Grip™ product line gets an Apple MagSafe Charger compatible insert. Designed specifically to fit the official Apple MagSafe Charger, this RAM® Quick-Grip™ phone holder has a removable backing plate so you can install your Apple MagSafe Charger directly into the holder with the ability to adjust the positioning of the charging disk depending on your iPhone 12 model iPhone. This insert allows a perfect and secure fit for the MagSafe's charging disk and is only compatible for the iPhone 12, 12 Pro, 12 Pro Max, and 12 mini with or without an official Apple MagSafe case. Included in this kit is the RAM® Handlebar U-Bolt base with B size short length socket arm, perfect for handlebar mounting on your motorcycle, UTV, or e-bike. The U-Bolt base accommodates rails from 0.5" to 1.25" in diameter and includes a spacer for a tight fit without scratching the handlebar. Take advantage of your iPhone 12's magnetic MagSafe charging abilities with this MagSafe mount.

hardware included

Assembly Hardware
(1) Safety Tether
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions

Height Range: 5.5" - 7"
Max Width: 3.5"
Max Depth: .62"

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.39 kg

Additional Information

This holder will not support iPhone 13 & iPhone 14 models. For iPhone 12 mini, case is required and use of included tether is required.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.



MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
