RAM® Locking Powered Dock with Pogo Pins for Zebra TC701
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features

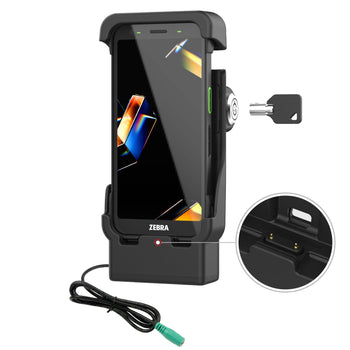

- Key-locking, spring-loaded powered dock for Zebra TC701
- Power delivered through two integrated pogo pins via 5.5mm DC barrel connector

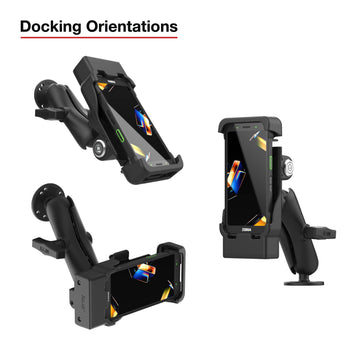

- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

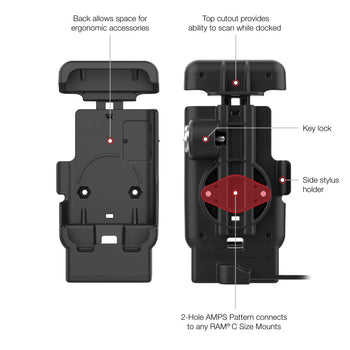

The RAM® Locking Powered Dock with Pogo Pins for Zebra TC701 (RAM-HOL-ZE41L-1U) is built to perform in demanding, real-world workflows. By charging through the device’s pogo pad docking contacts, the pogo pin design protects the TC701’s charge port while enhancing overall durability. A spring-loaded mechanism enables quick, one-handed docking and removal, keeping operators efficient on the move. The integrated top-cup cutout allows access to buttons, ports, and scanners without removing the device, so productivity never slows down. For added security in high-traffic environments, the integrated key lock provides reliable theft deterrence. Complete your mounting solution with confidence—this holder is RAM® Compatible™ and features a 2-hole AMPS pattern for seamless integration with a diamond ball adapter.
hardware included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Adhesive for Wireless Charger
(1) Cable Clamp
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input voltage
5V @ 1.6A
power output
9W
input connector
5.5mm DC Connector
Warranty
3 year warranty
Weight
0.47 kg
