RAM® Powered Dock with USB-C for Zebra TC501
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Spring-loaded powered dock for Zebra TC501
- Power and data trasferred via USB-C connector

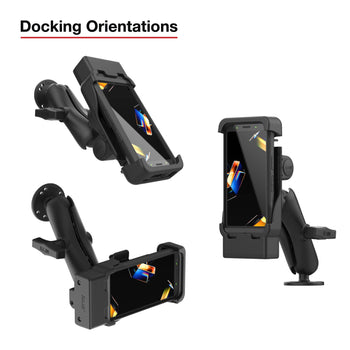

- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

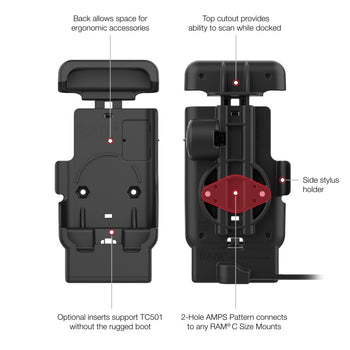

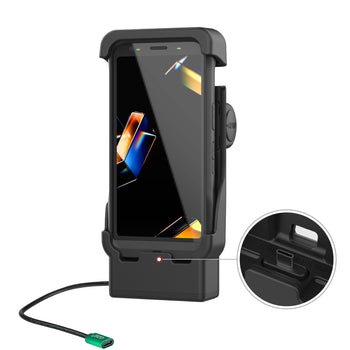

The RAM® Powered Dock with USB-C for Zebra TC501 (RAM-HOL-ZE41C-2U) is built to enable workflows dependent on data transfer, such as connecting to workstations via Zebra's Workstation Connect. The spring-loaded design allows operators to dock devices quickly and confidently, minimizing fumbling and reducing the risk of USB-C connector damage. The integrated top-cup cutout allows access to buttons, ports, and scanners without removing the device, so productivity never slows down. Complete your mounting solution with confidence—this holder is RAM® Compatible™ and features a 2-hole AMPS pattern for seamless integration with a diamond ball adapter.
hardware included
(2) Inserts for Device Without Boot
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Adhesive for Wireless Charger
(1) Cable Clamp
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type-C 2.0
transfer speed
USB 2.0 (480Mbps)
Warranty
3 year warranty
Weight
0.3 kg
